之前帮别人维护一台托管在idc的服务器,用Xen装的虚拟化系统,domain-0用的nginx作为反向代理,但是因为不在domain-0上面挂载站点,所以之前就打算用haproxy代替nginx作为反向代理
nginx和haproxy都是工作在OSI第七层的反向代理工具
之前用云智慧监控的时候发现,nginx到backend只会维护一个连接,后端nginx的并发数始终就是1
Xen的技术以后有时间整理一下再介绍
虚拟机配置
Domain-0 拥有外网IP 挂载在 xenbr0上面 Domain-1 局域网IP 192.168.122.127 网卡vif1.0 而vif1.0挂载在virbr0网桥上 …其他虚拟机类似
挂载
nginx 作为反向代理的配置
upstream DomainXen1 {
server 192.168.122.127;
}
server {
listen 80;
server_name www.funnysay.com funnysay.com;
#charset koi8-r;
#access_log /var/log/nginx/log/host.access.log main;
location / {
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_pass http://DomainXen1;
}
}
每个host都需要单独配置成一个conf文件,include到nginx-conf里面
比较复杂
haproxy的配置
frontend http-in
bind 0.0.0.0:80
mode http
log global
option httplog
option httpclose
option forwardfor
acl is_funnysay hdr_dom(host) -i www.funnysay.com
acl is_yuxuanjp hdr_dom(host) -i www.yuxuanjp-jiaju.com
use_backend funnysay if is_funnysay
use_backend yuxuanjp if is_yuxuanjp
default_backend funnysay
backend funnysay
balance roundrobin
cookie SERVERID
option httpchk GET /index.html
server web1 192.168.122.127:80 cookie web1 check inter 1500 rise 3 fall 3 maxconn 5000 weight 1
而haproxy通过配置acl来区分域名,然后传送到不同的backend服务器
haproxy配置详解
acl
[flags] [operator] ...
acl is_funnysay hdr_dom(host) -i www.funnysay.com
配置access list
,通过这块来定义host的匹配规则
option httpchk
option httpchk
option httpchk
option httpchk
这个指令是配置http健康状态检查,主要有两种典型的用法
一个是通过http来进行
option httpchk GET /index.html
另一种是直接通过tcp来检查
# Relay HTTPS traffic to Apache instance and check service availability
# using HTTP request "OPTIONS * HTTP/1.1" on port 80.
backend https_relay
mode tcp
option httpchk OPTIONS * HTTP/1.1\r\nHost:\ www
server apache1 192.168.1.1:443 check port 80
以上这种方式能够适用多种协议,不仅仅是HTTP,这是haproxy比nginx强大的地方,它既能工作在4层,也能工作在7层
server <name> <address>[:port] [param*]
server web1 192.168.122.127:80 cookie web1 check inter 1500 rise 3 fall 3 maxconn 5000 weight 1
这是配置后端服务器的指令,主要是服务器的名字,地址和端口
Haproxy常用与为集群服务提供单一的入口
比如在twemproxy之前放置haproxy可以提供对redis集群的统一入口访问
可能以后的文章会涉及
状态监控
stats enable stats auth admin:AdMiN123
通过stats
指令开启状态监控服务,这个方面要比nginx要好多了

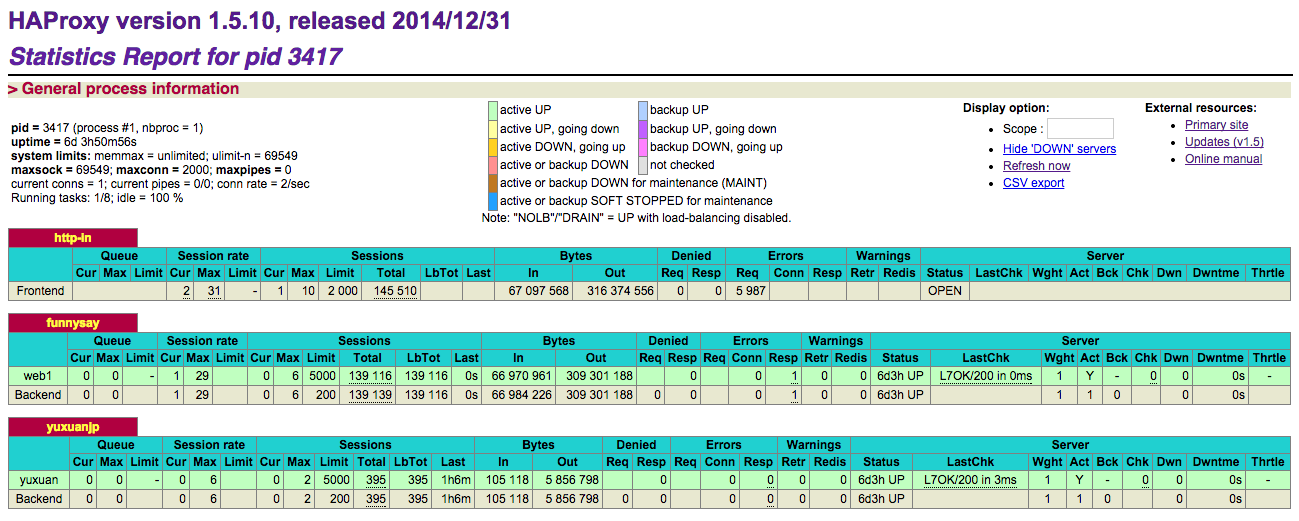

截个图
总结
Haproxy单纯只是一款负载均衡软件,可以工作在4,7层,能够对session进行保持,对cookie进行引导
在并发处理上也比nginx来得出色,基于这两点,以及服务器的架构,我把nginx换成haproxy完全的正确的~
